DX102 CE Approved 4 Inch Hydraulic Hose Crimping Machine with High Speed

  • DX102 CE Approved 4 Inch Hydraulic Hose Crimping Machine with High Speed
  • DX102 CE Approved 4 Inch Hydraulic Hose Crimping Machine with High Speed
  • DX102 CE Approved 4 Inch Hydraulic Hose Crimping Machine with High Speed
  • DX102 CE Approved 4 Inch Hydraulic Hose Crimping Machine with High Speed
  • DX102 CE Approved 4 Inch Hydraulic Hose Crimping Machine with High Speed
DX102 CE Approved 4 Inch Hydraulic Hose Crimping Machine with High Speed DX102 CE Approved 4 Inch Hydraulic Hose Crimping Machine with High Speed DX102 CE Approved 4 Inch Hydraulic Hose Crimping Machine with High Speed

DX102 CE Approved 4 Inch Hydraulic Hose Crimping Machine with High Speed

  • Crimping range:6~102mm ( 1/4~4" )
  • Max crimping Force:1400T
  • Rated Pressure:31.5Mpa
  • Weight: 520kg
  • Mold Quantity:16Sets
  • Power:4KW/5.5KW/7.5KW
  • INQUIRY   EMAIL
Factory Show
factory show
Product Description

Brief Introduction

The DX102 is a cutting-edge hydraulic hose crimping machine designed for precision and efficiency in the assembly of hydraulic hoses. With a versatile crimping range from 6 to 102mm (1/4 to 4 inches), this machine accommodates a wide variety of hose sizes, making it a versatile solution for different applications.

DX102 4" hose crimping machine






Hose crimping machine
Model DX68 DX76 DX102 DX150
Crimping range 6-51mm(1/4" ~2") 6~76mm ( 1/4~3" ) 6~102mm ( 1/4~4" ) 6-150mm(1/4~6")
Max crimping Force 449T 500T 1400T 2500T
Rated Pressure 31.5MPa 50Mpa 31.5Mpa 31.5Mpa
Weight 250kg 300kg 520kg 900kg
Mold Quantity 10 sets 13Sets 16Sets 17Sets
Power 3KW/4KW  4KW 4KW/5.5KW/7.5KW 4KW/5.5KW/7.5KW
Voltage 220V/380V 240V / 380V 380V or customized 380V or customized
Scale accuracy 0.02mm 0.02mm 0.01mm 0.01mm
Overall dimensions 670*490*780mm 730*470*930mm 900*790*1070mm 1030*630* 1160mm

Features and Benefits:

  • Versatile Crimping: The DX102 supports a broad range of hose sizes, providing flexibility for various hydraulic applications.
  • High Precision: Ensures accurate and consistent crimps, meeting the stringent requirements of hydraulic systems.
  • Multiple Mold Options: Equipped with 16 sets of molds, allowing users to handle diverse hose types with ease.
  • Ease of Operation: User-friendly design simplifies the crimping process, making it accessible for operators of all experience levels.
  • Durable Construction: Built with high-quality materials, the DX102 guarantees durability and long-lasting performance.
  • Efficient Workflow: Streamlines the crimping process, enhancing overall productivity in hose assembly.
  • Compact and Portable: The machine's design offers portability, enabling users to work efficiently in various locations.
  • Safety Measures: Incorporates safety features to protect operators during the crimping operation.
  • Quick Mold Changes: Facilitates rapid mold changes, minimizing downtime and optimizing workflow.
  • Reliable Crimping Results: Ensures secure and reliable connections, meeting the standards of hydraulic applications.
The DX102 Hydraulic Hose Crimping Machine is an ideal choice for businesses seeking a reliable, efficient, and versatile solution for hydraulic hose assembly.
Product Detail

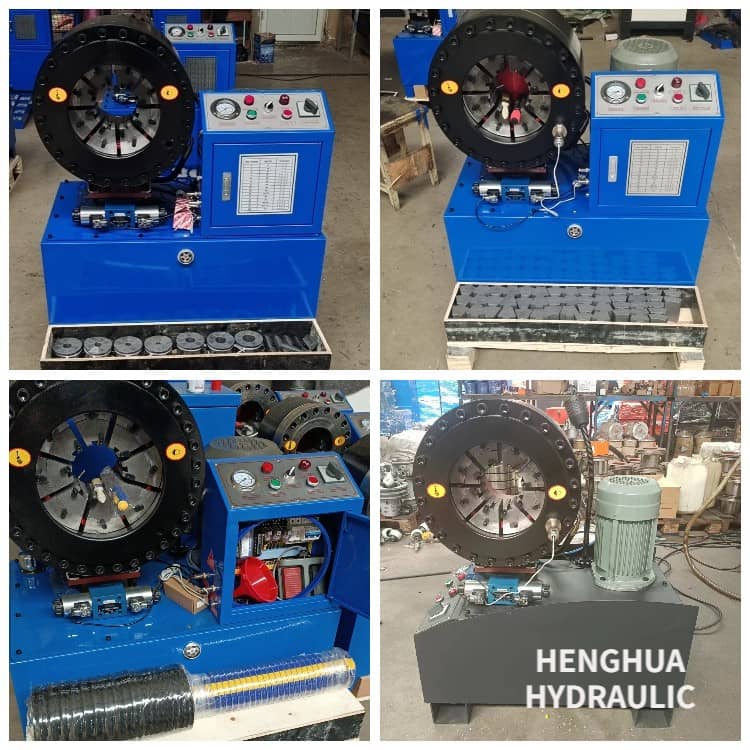

DX102 4" hose crimping machine
DX102 4" hose crimping machine
DX102 4" hose crimping machine
DX102 4" hose crimping machine
DX102 4" hose crimping machine
hot products

Main Technical Feature

1.Efficient, fast pump
2. dies can be changed quickly by QC tool
3. Die set rack,space saving.
4. Precision control device,equipped with signal lamp
5. automatic&semi-auto&button& foot pedal control operated
6.The height of the machine is just right for standing operation
factory visit

packing and delivery
packing and delivery

Installation and Operation


1.Add sufficiently 79 liters of Great Wall brand 46# anti-abrasion hydraulic oil. If the room tem- perature is lower than 10ºC, 10% transformer oil is need to add.
Connect the electric source well as per the machine requirements, to make the direction of the motor rotation to be consistent with the rotation direction marking, and grounding protection shall be done.

2.Regulating the scale
The scale is used for regulating the amount of the buckling. When it is regulated clockwise, the buckling amount will decrease, when it is regulated anticlockwise, the buckling amount will increase. The scale is connected together with oil cylinder end cover through three socket head screws and three springs on the scale base. When using a hand to pull the scale (vertical to the oil cylinder end cover direction), the scale can flexibly leave from the oil cylinder end cover. When releasing the scale, the scale will be recovered relying on spring force. Before the machine is turned on, inspect carefully if the scale telescoping is flexible and if the lead con- nection is reliable.

3.The primary scale is turned within 0 line of the secondary scale, turn the machine on for test run, and observe if all actions are normal. If when the piston conducts reciprocating move- ment, there is a crawling phenomenon, the bleed screw on the oil cylinder top shall be unscrewed for exhausting air.

4.Pressure regulation
The buckling pressure and opening mould pressure will be regulated through two knobs at the back of the oil cylinder (see figure), when it is regulated clockwise, the pressure will increase, when it is regulated anticlockwise, the pressure will decrease (The pressure has already been well regulated when ex-factory).

5.Operation
Based on the size of the rubber hose to be buckled, select suitable mould as per the technical parameter reference table of the locking pipe and mount it on the mould base. Regulated well the scale position as per the data in the data in the table, the pipe locking can be done. After pipe locking, use a vernier caliper to mease the outside diameter dimension of the pipe sleeve after buckling to see if it meets the reference table data of the parameter. If it does not meet the data, the scale shall be precisely regulated until it meets the requirements. Because the manufactures of the pipe sleeve are different, so, specific dimension, material, hardness etc are certainly not the same. These factors would result different influences on the pipe locking result, therefore, the data in the table is only for reference, the detailed data take the pressure test as the basis.

dies choose

Notices

1.When buckling, make the joint to locate the mould center as much as possible, the joint is not buckled on the hex nut.
2.Prevent tool and other foreign matter from entering the locking head.
3.After the work is finished for each time, the eight-block mould base must be made to extend to the greatest extent, this can make the spring to be at extension status. If not, the spring will be damage.
4.When working, the hand should not stretch into the locking head.
5.The power supply must be switched off when maintenance is done.
Maintenance and Care


Maintenance

The hydraulic oil in the oil tank should be frequently checked, if oil amount is found to be insuf- ficient, the oil shall be timely supplemented. If the oil liquid is polluted, it shall be filtered or replaced.
The locking head shall keep internal cleanliness. Avoid the foreign matters during processing to enter into the locking head oil cylinder via the mould to affect the normal use. Wipe out the foreign matters, which are brought by the mould body in time when buckling the joint.
Frequently fill suitable grease into the mould body for lubrication.


Promise

We will provide a guarantee to keep the machine in good repair within 12 months from the day when the machine is purchased. All fitting troubles will be free of charge repaired (or replaced if necessary) during the guarantee period. The damage resulted from improper use o accident damage does not belong to free of charge repair range.


The Packing List

1.The high pressure locking tube machine in model DX 68 one set
2.Mold (Total 10 Sets)Φ6 1 set
Φ10 1 set
Φ13 1 set
Φ16 1 set
Φ19 1 set
Φ22 1 set
Φ25 1 set
Φ32 1 set
Φ38 1set
Φ51 1set

Certification
CE-certification
Company Strength
company strength
customer vist


customer praise
FAQ

 1. What level of service do you provide ?

*Your inquiry will be replied in 24 hours.

*Eight continuous years as an Alibaba Gold supplier and more than 25 years industrial technology and manufacturing experience .

* We offer free spare parts and service within 14 month warranty period.

* Technology Support by providing operation training videos .

* Professional after-sales service team.

* Give reasonable offers with the best quality.


2. What is our advantages?

* Competitive price: We can meet your budget and best-selling business very well.

* OEM Accepted: We can produce customized design.

* Good Service: We treat clients as friends and provide problem solving anytime you need.

* Good Quality: We have strict quality control system. Good reputation in the market.

* Fast & Delivery: We have big discount from forwarder (Long-term Contract).

* Door To Door Service.


3.  Can you customize the machine for the customer?

Yes. We can, we also provide OEM for customers; If you need customized services, please contact us


4.  What is the MOQ?

We usually provide 1 set for customers to test.
