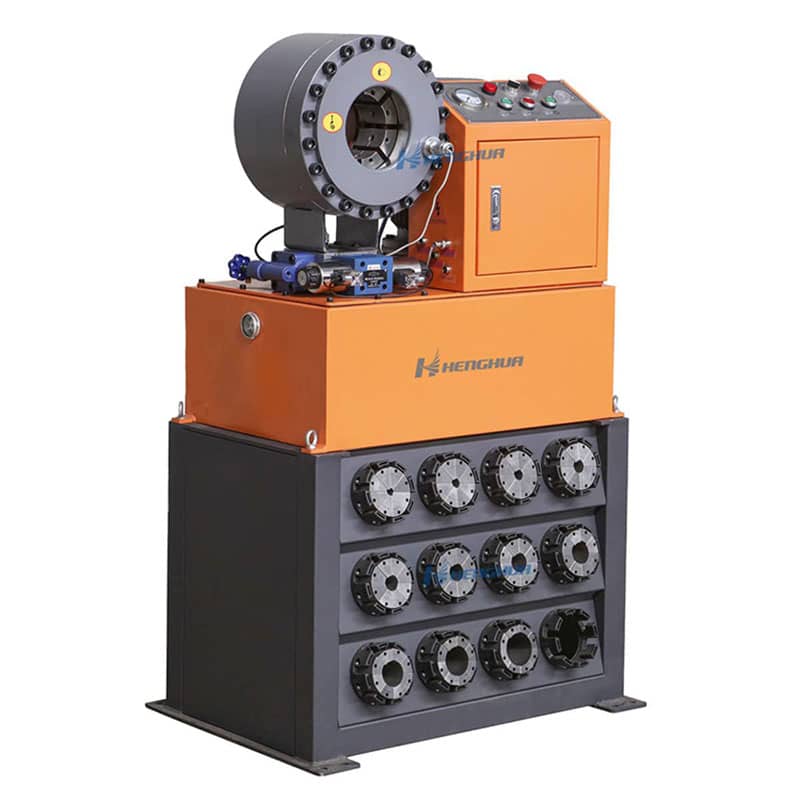

The DX68 Hydraulic Hose Crimping Machine, a flagship product from HengHua Hydraulic, stands out for its advanced features tailored to meet diverse hydraulic hose crimping needs. Its exceptional performance has earned it international recognition, making it a popular choice worldwide. The success of this hydraulic hose crimper has even led to imitations and adaptations in various markets, further highlighting its impact on the global stage.
Equipped with a dedicated die rack, the DX68 hydraulic hose crimping machine ensures organized storage and quick access to a wide range of dies. Customizable color options also allow for personalization to suit individual preferences. Known for its precision and reliability, this hydraulic hose crimper excels in delivering consistent results across various applications.
It's no surprise that the DX68 has become the top choice for dealers around the world. Dealers from multiple countries continue to import this hydraulic hose crimping machine due to its exceptional value. Combining outstanding performance with user-friendly features, the DX68 offers the most cost-effective hydraulic hose crimping solution on the market.
| TECHNICAL DATA | ||
| Item | DX68 | DX68F |
| Crimping Range： | 6-51mm ( 1/4-2" ) | 6-51mm ( 1/4-2" 4SH) Max Hose ID |
| Quantity of Mold： | 10 sets | 11 sets |
| Mould Size (mm)： | 15,19,23,26,31,36,41,47,55,63 | 14,18,21,26,30,34,38,45,50,57,65 |
| Accuracy: | 0.01mm | 0.01mm |
| Swept Volume: | 2.5L/5L/10L (Optional) | 2.5L/5L/10L (Optional) |
| System Pressure： | 31.5Mpa (Optional) | 31.5Mpa (Optional) |
| Power: | 3KW/4KW (Optional) | 3KW/4KW (Optional) |
| Voltage: | 220V/240V/380V/415V (Optional) | 220V 60HZ 1 PHASE (Optional) |
| Buckling Pressure： | 400T | 500T/650T |
| Efficiency : | 200pcs/h | 200pcs/h |
| Dimension: | 730*480*740 mm | 800*600*1380 mm |
| Package Dimension: | 820*560*1000 mm | 890*1140*900 mm |
| Net Weight : | 245kg | 380kg |
| Gross Weight: | 260kg | 320kg |
| Maximum Open Diameter: | 114mm | 125mm |
| Range: | ±30mm | ±30mm |
| Light： | including | including |
| Foot Pedal： | including | including |
| Quick Change Tool: | Including | including |
| Die Rack: | Including | including |
| Oil Cylinder Configuration: | Double Cylinder ( Optional ) | Double Cylinder ( Optional ) |
Superior Crimping Performance
The DX68 hydraulic hose crimping machine delivers precise crimping for various types of hoses, including high-pressure hydraulic hoses, industrial hoses, and flexible pipes, ensuring accuracy and reliability in every application.
Premium Materials and Renowned Components
Built with top-quality materials, the DX68 hydraulic hose crimper offers durability and long-lasting performance. It incorporates high-quality components from renowned suppliers, ensuring efficient and reliable crimping operations.
User-Friendly Operation, Time-Saving Efficiency
This machine features an intuitive interface for easy use. The quick-change die system streamlines the die replacement process, minimizing downtime and significantly boosting productivity in fast-paced work environments.
Modular Design, Flexible Customization
The DX68 comes with a dedicated die storage rack for organized and easy access. Additionally, it offers flexible customization options, including personalized color choices, to meet diverse industrial requirements and user preferences.
