HH76 Fast Delivery 220 V/6 mm - 78 mm/15 sets hydraulic hose crimping machine

Swaging range:6 mm Φ - Φ 78 mm (hose diameter)
Dies sets:15 sets (unit: mm)
Dies size:14,16,19,22,26,30,34, 39,45,51,57,63,69,74,78
Ruler precision:0.1mm
Rated pressure:50mpa
Power:220v/3.7kw 380v/3.7kw
INQUIRY EMAIL

Product Description

Main Feature:

1) Made using forged steel machine head, this kind of steel is more durable than general steel.

2) Simple controls and operation, specialize in vehicle-mounted mobile service.

3) High crimp accuracy, precise and adjustable through a micrometer.

Model	HH51	HH51-1	HH76	HH102
Swaging range	6 mm Φ - Φ 51 mm	6 mm Φ - Φ 51 mm	6 mm - 78 mm Φ Φ	15mm-123mm
Swaging range	(hose diameter)	(hose diameter)	6 mm - 78 mm Φ Φ	15mm-123mm
Dies sets	10 sets (unit: mm)	12 sets (unit: mm)	15 sets	15 sets
Dies size	6, 10, 13, 16, 19,	14, 16, 19, 23, 27, 31,	14,16,19,22,26,30,34,	15,18,21,24,27,33,
	22, 25, 38, 51	36, 41, 47, 53, 62, 68	39,45,51,57,63,69,74,78	39,45.51.57.66.73.90
				.96.102.108.114.123
Ruler precision	0.5mm	0.1mm	0.1mm	0.1mm
Rated pressure	31.5mpa	31.5mpa	50mpa	50mpa
Power	220v/3kw	220v/3kw	220v/3.7kw	380v/7.5kw
Power	380v/3kw	380v/3kw	380v/3.7kw	415v/7.5kw
Weight	200kg	200kg	210kg	400kg
Dimension	500mm*600mm	500mm*600mm	500mm*600mm	900mm*850mm
Dimension	*600mm	*600mm	*650mm	*1015mm
Tank	50L	50L	60L	70L
The largest crimping pressure	500T	500T	500T	1400T
Oil pump out-let quantity	2.5m/rad	2.5m/rad	2.5m/rad	2.5m/rad
Shrinkage range	25 mm	30 mm	30 mm	30 mm
Noise level	65dB	65dB	65dB	65dB
Max opening (mm)	120 mm	120 mm	140 mm	175 mm

Product Detail

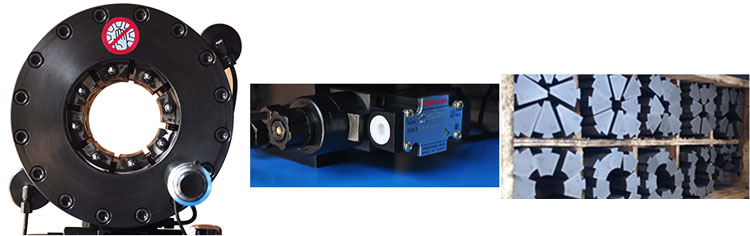

Machine Head

Front cover, cylinder and piston use Chrome40, forging integrity, increase its fatigue resistance. Surface hardness is HRC26-30°, hardness of inside layer is HRC59-63°, Eht 2mm.

Electromagnetic

It is used to adjust the hydraulic oil flow direction, quantity, speed etc. It has high precision and great flexibility. The reversing valve spool is stable, with no shaking or blocking.

Dies & Mold Base

Uses standard die steel which is a classical alloy tool steel. Dies and die base are connected by cutting edge technology of strong magnetic connection, for which our company holds patents.
