This crimping machine can be mainly used for crimping the hydraulic hose 4SP, 4SH, R12, R13,R15 ect 6 wires , from 1/8" to 4" . This model is most powerful , low noise, and high efficiency.
| Model | HF-60A | HF-120F/240F |
| Max hose size | 4"6S | 8"4S/16" |
| Swaging range | Φ 6-170mm | Φ102-230/480 |
| Master die shoe length | 120mm | 170/200mm |
| Standard voltage | 380V/50Hz | 380V/50Hz |
| Motor power | 5.5kW | 5.5kW |
| Optional voltage &motor | 220V/2.2kW | 220V/440V |
| Pump | 36L/min | 36L/min |
| Number of swaging / hour | 800 | 400 |
| Noise level | 75dB | 75dB |
| Max opening | Φ+35mm | Φ+43/66mm |
| Crimping force | 12560kN | 20610/38000kN |
| Electric limit switch | include | include |
| Electronic control | include | include |
| Electric pedal | include | include |
| Manual change | include | include |
| Dimensions L x W x H | 1100x700x1200mm | 1250x820x1250mm |
| Weight without oil | 980Kg | 1300/1800Kg |
.jpg)
.jpg)

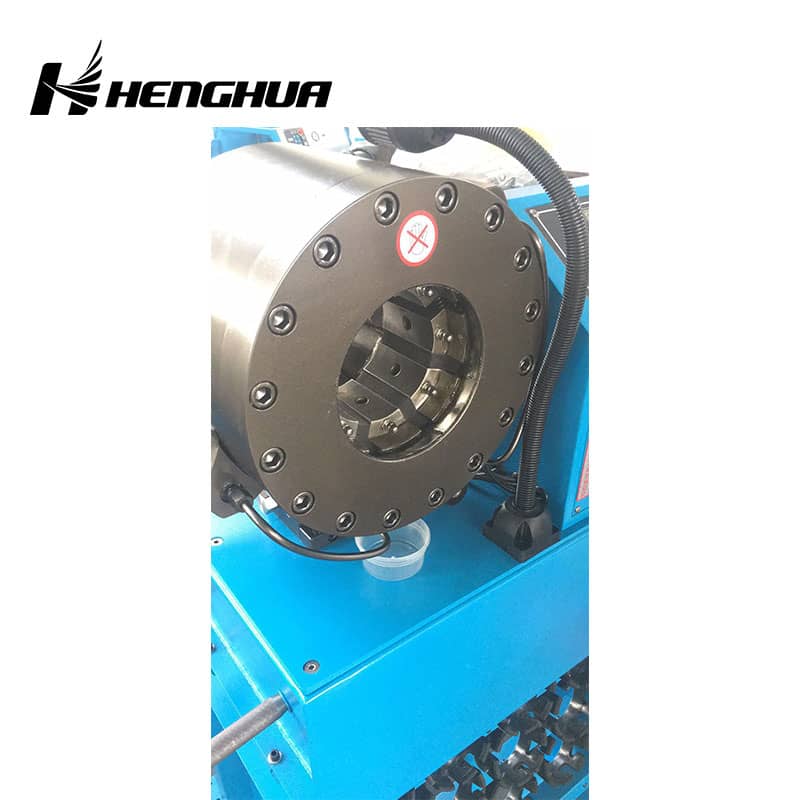

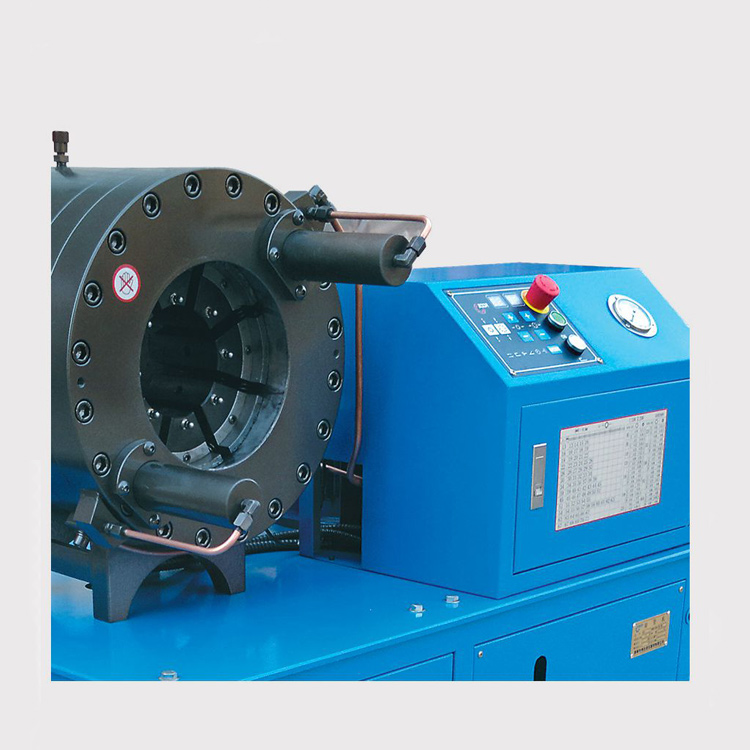

Machine Head
Front cover, cylinder, and piston use Chrome40, forging integrity, increase its fatigue resistance.
Control Panel
Automatic and semi-automatic adjust, safety in use and high efficient.
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
1. What level of service do you provide ?
*Your inquiry will be replied in 24 hours.
*Eight continuous years as an Alibaba Gold supplier and more than 25 years industrial technology and manufacturing experience .
* We offer free spare parts and service within 14 month warranty period.
* Technology Support by providing operation training videos .
* Professional after-sales service team.
* Give reasonable offers with the best quality.
2. What is our advantages?
* Competitive price: We can meet your budget and best-selling business very well.
* OEM Accepted: We can produce customized design.
* Good Service: We treat clients as friends and provide problem solving anytime you need.
* Good Quality: We have strict quality control system. Good reputation in the market.
* Fast & Delivery: We have big discount from forwarder (Long-term Contract).
* Door To Door Service.
3. Can you customize the machine for the customer?
Yes. We can, we also provide OEM for customers; If you need customized services, please contact us
4. What is the MOQ?
We usually provide 1 set for customers to test.
