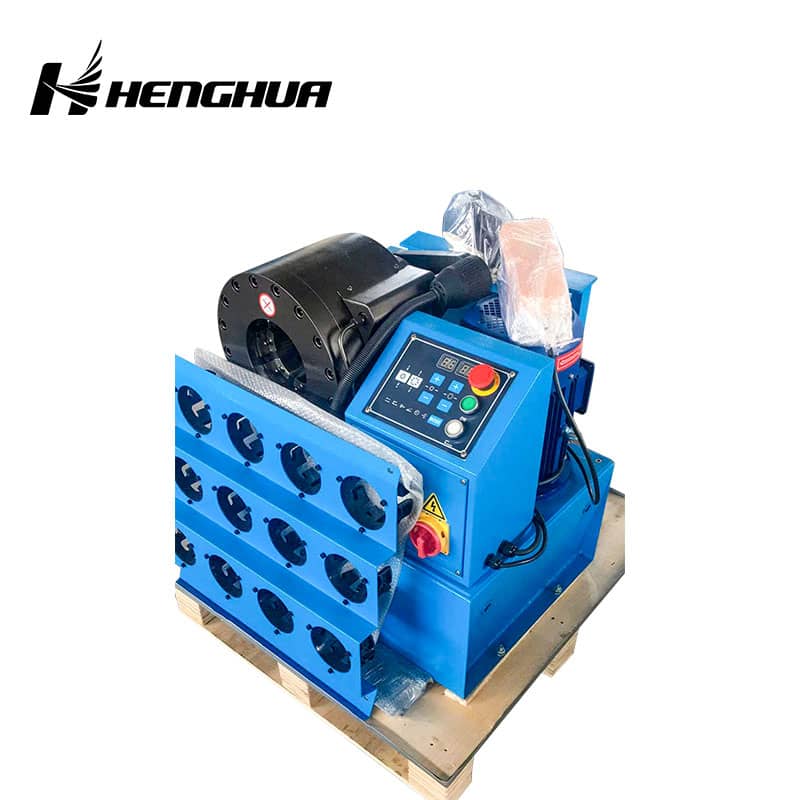

HF48C professional hydraulic die holder hose crimping machine

  • HF48C professional hydraulic die holder hose crimping machine
  • HF48C professional hydraulic die holder hose crimping machine
  • HF48C professional hydraulic die holder hose crimping machine
  • HF48C professional hydraulic die holder hose crimping machine
  • HF48C professional hydraulic die holder hose crimping machine
HF48C professional hydraulic die holder hose crimping machine HF48C professional hydraulic die holder hose crimping machine HF48C professional hydraulic die holder hose crimping machine

HF48C professional hydraulic die holder hose crimping machine

  • Crimping Range (mm):Φ 6-130
  • Max hose size:3"4S
  • Master die shoe length(mm):110
  • Standard voltage:380V/50Hz
  • Motor power:4kW
  • Optional voltage&motor:220V/2.2kW
  • INQUIRY   EMAIL
Product Description



HF20C hydraulic crimping machine best sale machine compression presses for sale

Model HF32D HF48C HF20C
Crimping Range (mm) Φ 6-87 Φ 6-130 Φ 6-87
Max hose size 2"6S 3"4S 11/4"4S
Master die shoe length(mm) 85 110 85
Standard voltage 380V/50Hz 380V/50Hz 380V/50Hz
Motor power 4kW 4kW 3kW
Optional voltage&motor 220V/2.2kW 220V/2.2kW 220V/2.2kW
Pump(l/min) 19L 19L 15L
Number of swagings/hour 1000 800 1000
Noise level (dB) 70 70 70
Max opening(mm)  Φ+34mm Φ+31mm Φ+34mm
Crimping force(kN) 5260 8610 4600
Dimensions LxWxH(mm)  650x500x1300 685x530x1400 685x530x1250
Weight without oil 350Kg 480Kg 280Kg

Main Feature:

1. Microcomputer Control, Taiwan's Hydraulic System;

2. Overall replacement of mold;

3. Extended mold;

4. Its motor for driving the knife is easily controlled using a foot pedal which allows the operator to use both hands for guiding the hose through the process.

5. Simple structure, easy to operate and maintain.


Product Detail





HF32D 1/4" to 2" Heavy Duty Ce Uniflex Finn Power Hydraulic Hose Crimping Machines

Machine Head

Front cover, cylinder and piston use Chrome40, forging integrity, increase its fatigue resistance.

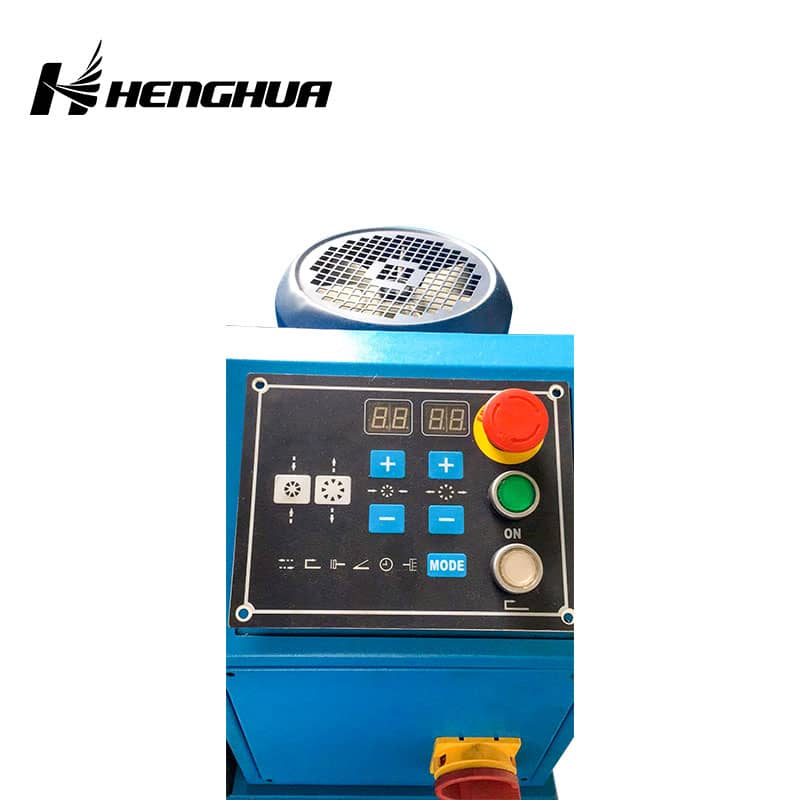

Control Pannal

Automatic and semi-autometic adjust,safety in use and high-efficent



HF32D 1/4" to 2" Heavy Duty Ce Uniflex Finn Power Hydraulic Hose Crimping Machines

Overall replacement of mold

Quick change tool

HF32D 1/4" to 2" Heavy Duty Ce Uniflex Finn Power Hydraulic Hose Crimping Machines

Dies Holder

Quick change die tooling is included and makes consecutive crimping fast.

Mounter Bench

Operators can install hose fittings or do other work on the workbench.
